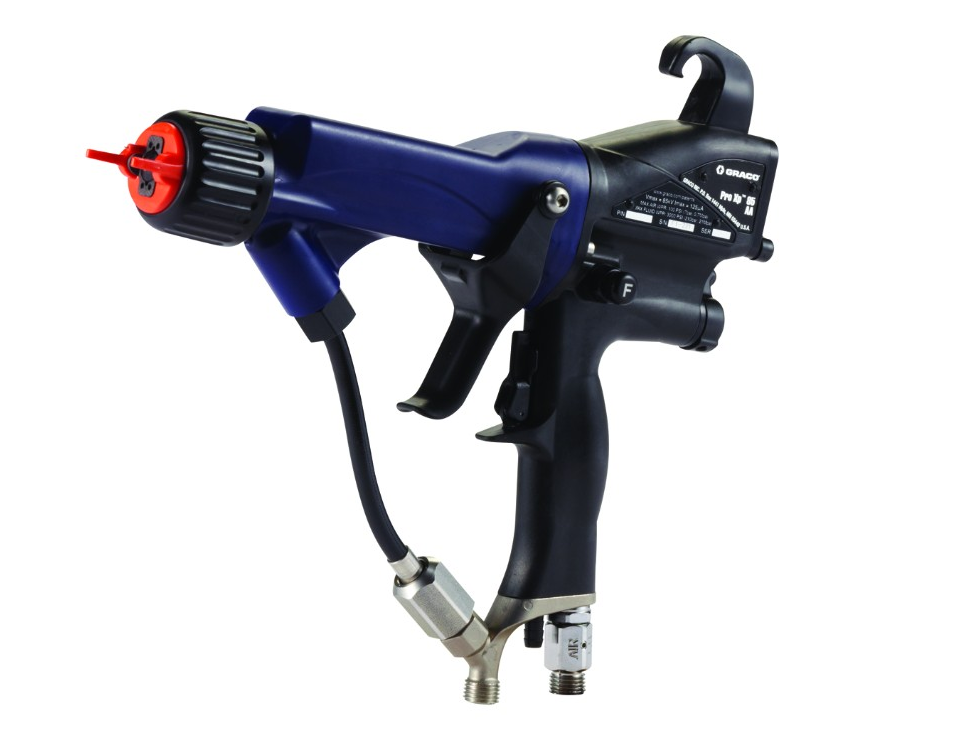

Our improved tip line delivers a high quality finish for a variety of applications. Plus, the pre-orifice tips atomize paints for fine finish applications. Pro Xp85 Air-Assist gun line includes Standard and Smart models.
- High quality spray performance with a one-piece aircap and a variety of tips
- Electrostatic guns are easier to adjust with larger control knobs
- Alternator speed indicator light ensures your turbine speed is running at the correct level
- Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
- Increase transfer efficiency up to 10%
- Made in the USA
- Internal power supply reduces operator fatigue with no heavy cords to slow you done
- Rugged, dependable design supported by a three year warranty
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco’s requirements
|
Electrostatic Air-Assisted Spray Guns |
|
|
Maximum Working Fluid Pressure |
3000 psi |
|
Maximum Working Air Pressure |
100 psi |
|
Minimum Air Pressure at Gun Inlet |
45 psi |
|
Maximum Fluid Operating Temperature |
120°F |
|
Paint Resistivity Range |
3 megohm/cm to infinity |
|
Air Inlet Fitting |
1/4 npsm(m) left-hand thread |
|
Fluid Inlet Fitting |
1/4–18 npsm(m) |
|
Output Voltage |
Pro Xp60 Models: 60 kV. Pro Xp85 Models: 85 kV |
|
Maximum Current Draw |
125 microamperes |
|
Sound Power (measured per ISO Standard 9216) |
at 40 psi: 88.9 dB(A) at 100 psi: 99.7 dB(A) |
|
Sound Pressure (measured 1 m from gun) |
at 40 psi: 86.0 dB(A) at 100 psi: 95.0 dB(A) |
|
Wetted Parts |
PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene |
