Eaton Chemical Hoses

Chemical

Don’t leave room for error when selecting hoses for critical applications. Eaton industrial hose products not only feature the extreme chemical resistance to easily transfer contaminated or hazardous materials, but are also branded and color-coded to make it easy to select the right hose for the job.

Common applications include:

• Transfer of acids, chemicals, solvents, and petroleum products;
• Loading and unloading, pumping, suction, or gravity flow discharge
• Suction and discharge of chemicals, and solvents
• In-plant transfer of chemicals, alcohols, acids and petroleum
• Spray pesticides, fertilizers and paint

Addresses these engineering challenges:

• Safer operation
• Longer hose life
• Full range of sizes and styles

Product Features

• Every hose features permanent branding for quick and easy identification
• Unique design permits easy, safe handling of the hose
• 4:1 safety factor on select hoses (burst: working pressure), exceptional aging, weathering and heat resistance result in safer operation and longer hose life

Technical Information

Suction & Discharge:

H0060 – ARMORCAT Corrugated Petrochemical

• Tube: UHMW–PE FDA-approved material
• Reinforcement: 2-wire braid, dual stainless steel static wire
• Cover: Corrugated EPDM
• Temp: -40°C to +121°C, (-40°F to +250°F) *Intermittent
• Pressure: 35 bar / 500 psi

H0554 – ARMORCAT Petrochemical

• Tube: UHMW-PE FDA-approved material
• Reinforcement: 2-wire braid, dual stainless steel static wire,
• and helical wire
• Cover: EPDM
• Temp: -40°C to +121°C, (-40°F to +250°F) *Intermittent
• Pressure: 35 bar / 500 psi

H0599 – CHEMCAT Corrugated Petrochemical

• Tube: UHMW–PE FDA-approved material
• Reinforcement: 2-ply fiber with dual helical wire
• Cover: Corrugated EPDM
• Temp: -40°C to +121°C, (-40°F to +250°F) *Intermittent
• Pressure: 12,1–20,7 bar / 175-300 psi

H0523 – CHEMCAT Petrochemical

• Tube: UHMW-PE FDA-approved material
• Reinforcement: 2-ply fiber and dual helical wires
• Cover: EPDM
• Temp: -40°C to +121°C, (-40°F to +250°F) *Intermittent
• Pressure: 12,1-20,7 bar / 175-300 psi

EHC005 – Corrugated UHMW-PE S & D

• Tube: UHMW-PE F DA-approved material
• Reinforcement: High-tensile synthetic textile, steel helical wire
• and anti-static copper wire
• Cover: Corrugated EPDM
• Temp: -40°C to +80°C, (-40°F to +176°F)
• Pressure: 10,5 bar / 150 psi

EHC004 – UHMW-PE S & D

• Tube: UHMW-PE FDA-approved material
• Reinforcement: High-tensile synthetic textile, steel helical wire
• and anti-static copper wire
• Cover: EPDM rubber
• Temp: -40°C to +80°C, (-40°F to +176°F)
• Pressure: 10,5 bar / 150 psi

H0661 – COUGAR Corrugated

• Tube: CPE
• Reinforcement: 2-ply fiber with helical wire
• Cover: EPDM
• Temp: -43°C to +135°C, (-45°F to +275°F)
• Pressure: 12,1 bar / 175 psi

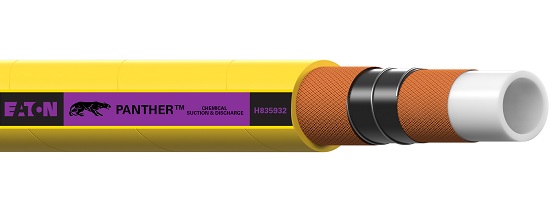

H8359 – PANTHER Chemical

• Tube: XLPE
• Reinforcement: 2-ply fiber with helical wire
• Cover: EPDM
• Temp: -43°C to +66°C, (-45°F to +150°F)
• Pressure: 12,1-17,2 bar / 175-250 psi

H0615 – Corrugated Green CROSS-LINKED

• Tube: XLPE
• Reinforcement: 2-ply fiber with helical wire
• Cover: Corrugated EPDM
• Temp: -43°C to +66°C, (-45°F to +150°F)
• Pressure: 12,1-17,2 bar / 175-250 psi

H0378 – Green CROSS-LINKED

• Tube: XLPE
• Reinforcement: 2-ply fiber, with helical wire
• Cover: EPDM
• Temp: -43°C to +66°C, (-45°F to +150°F)
• Pressure: 12,1-17,2 bar / 175-250 psi

EHC002 – Flat Corrugated Chemical S & D

• Tube: PE blend
• Reinforcement: High-tensile synthetic textile, dual steel helical wire
• and anti-static copper wire
• Cover: Flat corrugated EPDM
• Temp: -40°C to +80°C, (-40°F to +176°F)
• Pressure: 10,5 bar / 150 psi

EHC001 – Chemical S & D

• Tube: PE blend
• Reinforcement: High-tensile synthetic textile, dual steel helical wire
• and anti-static copper wire
• Cover: EPDM
• Temp: -40°C to +80°C, (-40°F to +176°F)
• Pressure: 10,5 bar / 150 psi

H0345 – TIGER Chemical S & D

• Tube: EPDM
• Reinforcement: 2-ply fiber with helical wire
• Cover: EPDM
• Temp: -43°C to +82°C, (-45°F to +180°F)
• Pressure: 10,5 bar / 150 psi

Discharge:

H9699 – ALLEYCAT Hot Liquid

• Tube: EPDM
• Reinforcement: 2-wire braid with anti-static wire
• Cover: EPDM
• Temp: -40°C to +149°C, (-40°F to +300°F)
• Pressure: 41 bar / 600 psi

H0346 – LEOPARD Chemical Discharge

• Tube: EPDM
• Reinforcement: 2-ply fiber
• Cover: EPDM
• Temp: -43°C to +82°C, (-45°F to +180°F)
• Pressure: 7,0-10,5 bar / 100-150 psi

Specialty:

H1941 & H1942 – NYALL

• Tube: Nylon
• Reinforcement: 1- or 2-fiber braid
• Cover: Neoprene or Vinyl Nitrile
• Temp: -34°C to +71°C, (+30°F to +160°F)
• Pressure: 35-52 bar / 500-750 psi

H1561 – CHEMFORCE

• Tube: PVC/Polyurethane blend
• Reinforcement: 4-spiral fiber
• Cover: PVC
• Temp: -9°C to +71°C, (+15°F to +160°F)
• Pressure: 41 bar / 600 psi
