Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

For large drums up to 200 liter (55 gal)

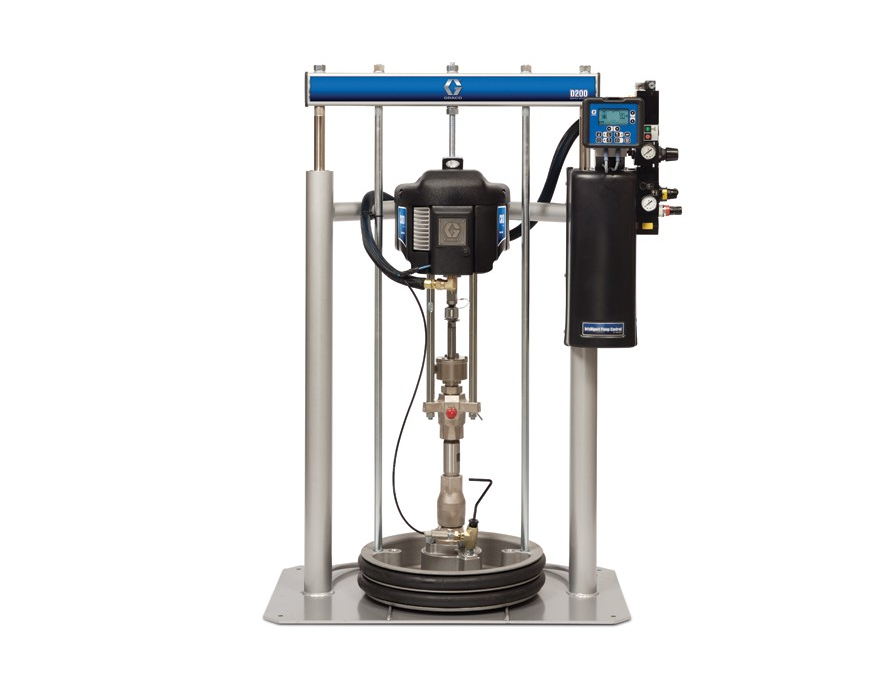

Graco D200 – For high-volume in-plant applications
Graco D200s – For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials

For pails up to 60 liter (16-gal)

For 20, 30 and 60 liter (5, 7, and 16-gal) pail sizes. Provides the same proven technologies as the larger systems, but with small NXT Air Motors.
Graco L20c – A lightweight, elevator ram on a cart
Graco S20 – For low-volume applications of medium to high-viscosity materials
Graco S20c – Same as the S20, but includes a cart
Graco D60 – Provides higher down-force and 60-liter pail capacity

Industry-first controls give you immediate and important information at the touch of a button
Quick placement of drum or pail
Platen wipers can be replaced in seconds
Pump’s quick-disconnect coupler, turbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Supply Systems
Max air input pressure (supply system) / Air inlet size
L20c – 2 in elevator, 5 gal (20 l)	100 psi / 1/2 npsm(f)
S20 – 3 in single post, 5 gal (20 l)	125 psi / 1/2 npt(f)
D60 – 3 in dual post, 16 gal (60 l), 5 gal. (20 l), 30 gal	150 psi / 3/4 npt(f)
D200 – 3 in dual post, 55 gal (200 l), 30 gal (115 l),16 gal (60 l), 8 gal (30 l), 5 gal (20 l)	150 psi / 3/4 npt(f)
D200s – 6.5 in dual post, 55 gal (200 l), 30 gal (115 l)	125 psi / 3/4 npt(f)
Max fluid, air working pressure. and weight (displacement pump)
For Check-Mate pump packages, see manual 312376. For Dura-Flo pump packages, see manuals 311826, 311828, 311833.
Pump Wetted parts
For Check-Mate displacement pumps, see manual 312375. For Dura-Flo displacement pumps, see manuals 311717, 311825, 311827.
Platen Codes: Part number; Wetted parts
B : 257727, 5 gal (20 l), J : 257732, 8 gal (30 l), S : 257737, 16 gal (60 l)	Electroless nickel, polyurethane, nitrile, carbon steel, polyethylene, zinc plated carbon steel, buna, 316 sst, 17-4PH sst
C : 257728, 5 gal (20 l), K: 257733, 8 gal (30 l), T: 257740, 16 gal (60 l)	Electroless nickel, polyurethane, carbon steel, polyethylene, nitrile, zinc plated carbon steel, buna, 316 sst 17-4PH sst
F : 257729, 5 gal (20 l), L : 257734, 8 gal (30 l), U : 257738, 16 gal (60 l)	Stainless steel, polyurethane, PTFE coated nitrile, polyethylene, nitrile, PTFE, 303 sst, 304 sst, 316 sst, 17-4PH sst
G : 257730, 5 gal (20 l), M : 257735, 8 gal (30 l), W : 257739, 16 gal (60 l)	Electroless nickel, aramind reinforced elastomer, rubber- based PSA, nitrile, polyethylene, zinc plated carbon steel, buna, 1018 carbon steel, 304 sst, 316 sst, 17-4PH
H : 257731, 5 gal (20 l), R : 257736, 8 gal (30 l), Y : 257741, 16 gal (60 l)	Electroless nickel, aramind reinforced elastomer, rubber- based PSA, polyurethane, polyethylene, nitrile, zinc plated carbon steel, buna, 1018 carbon steel, 304 sst, 316 sst, 17-4PH sst
7 : 255661, 30 gal (115 l)	zinc plated carbon steel, EPDM, sst, fluoroelastomer
8 : 255662, 55 gal (200 l)	PTFE, EPDM, PTFE coated aluminum, zinc plated carbon steel, 316 sst
9 : 255663, 55 gal (200 l)	EPDM, aluminum, zinc plated carbon steel, 316 sst
A : 255664, 55 gal (200 l)	PTFE, neoprene, aluminum, zinc plated carbon steel,
Ambient operating temperature range (supply system)
32-120°F
Sound data
See separate air motor manual.
External power supply requirements (DatraTrak)
AC power units	100-240 Vac, 50/60 Hz, single phase, 1.2 amps max
DC power units	24 Vdc, 1.2 amps max draw
