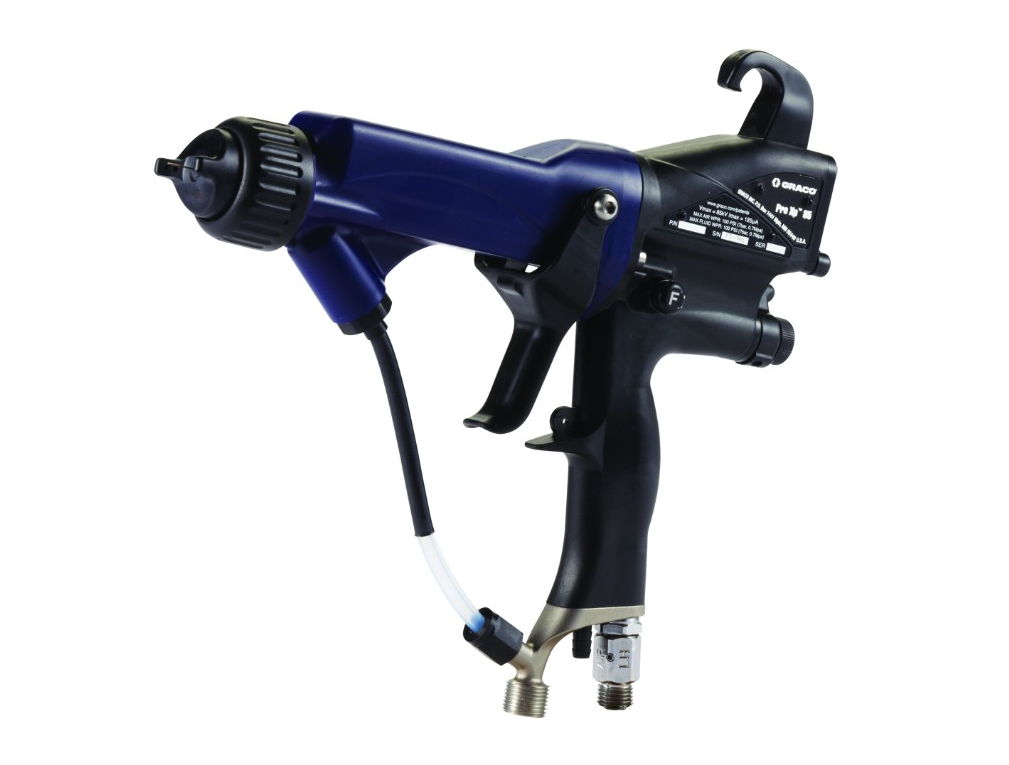

The ergonomic design and effeciency of the Pro Xp85 makes it the perfect solution for your application – saving you money and improving quality. Pro Xp85 Air Spray electrostatic gun line includes Standard, Smart and High Conductivity models.
- Electrostatic guns are easier to adjust with larger control knobs
- Alternator speed indicator light ensures your turbine speed is running at the correct level
- Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
- Made in the USA
- Internal power supply reduces operator fatigue with no heavy cords to slow you down
- Rugged, dependable design supported by a three year warranty
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco’s requirements.
|
Electrostatic Air Spray Guns |
|
|
Maximum Working Fluid Pressure |
100 psi |
|
Maximum Working Air Pressure |
100 psi |
|
Minimum Air Pressure at Gun Inlet |
45 psi |
|
Maximum Fluid Operating Temperature |
120°F |
|
Paint Resistivity Range |
3 megohm/cm to infinity. For a table of electrostatic results at different resistance levels, see instruction manual.. |
|
Air Inlet Fitting |
1/4 npsm(m) left-hand thread |
|
Fluid Inlet Fitting |
3/8 npsm(m) |
|
Output Voltage |
Pro Xp40 Models: 40 kVPro Xp60 Models: 60 kVPro Xp85 Models: 85 kV |
|
Maximum Current Draw |
125 microamperes |
|
Sound Power (measured per ISO Standard 9216) |
at 40 psi: 90.4 dB(A)at 100 psi: 105.4 dB(A) |
|
Sound Pressure (measured 1 m from gun) |
at 40 psi: 87.0 dB(A)at 100 psi: 99.0 dB(A) |
|
Wetted Parts |
PEEK, UHMWPE, FEP, PTFE, acetal, nylon, polyethylene |
