15 Gallon Galvanized Pressure Tank

To Order Call:
216.749.5100216.749.5100

Galvanized lid and tank shell. Disposable liners available for ease of cleaning.  All 183G tanks include fill port. The following configurations are available:

183G-1500 – No regulation and no agitation  *
183G-1510 – Single regulated and no agitation
183G-1513 – Single regulated and 20:1 gear reduced agitator
183G-1520 – Double regulated and no agitation
183G-1523 – Double regulated and 20:1 gear reduced agitator
183G-1530 – Single regulated with extra sensitive regulator
183G-1533 – Single regulated with extra sensitive regulator & 20:1 gear reduced agitator
183G-1540 – Double regulated with extra sensitive regulator
183G-1543 – Double regulated with extra sensitive regulator & 20:1 gear reduced agitator
* NOTE:  Remote Regulator Required.

  • Name: 15 Gallon Galvanized
  • Part Number: 183G-15XX Series
  • Family: Galvanized Tanks
  • Type: Pressure Tank
  • Wetted Materials: Galvanized lid and tank shell
  • Fluid Out:  3/8″ NPS

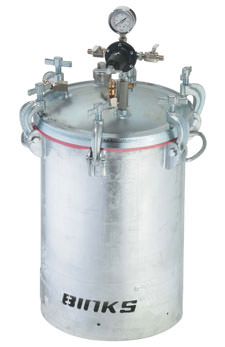

  • Capacity: 19.8 Gallons – 183G-1523 shown
  • Regulation: Single, Double, or Extra Sensitive
  • Agitator: Standard (Indirect),  or none
  • Liners: PTL-415-K10
  • Bottom Outlet: Bottom Outlet Conversion Kit
