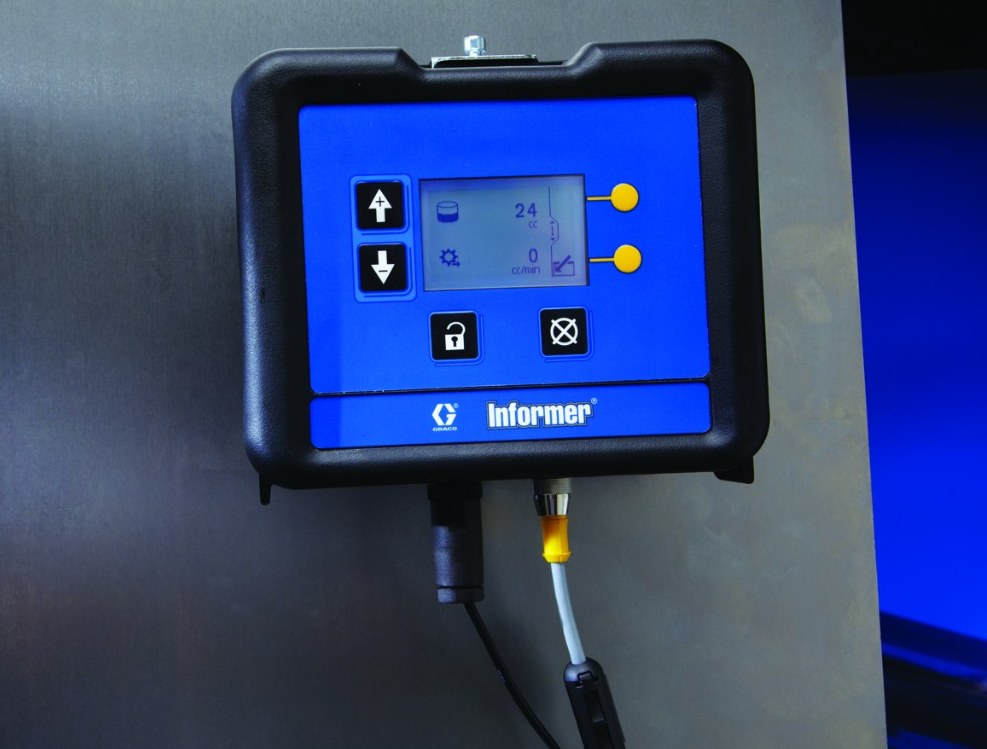

The Informer is a great tool for reducing paint waste, collecting data and improving the finishing process. This easy-to-use fluid monitoring package accurately measures flow rate and the amount of material that passes through a fluid line. An ideal solution for solvent tracking!
- Intrinsically safe AC mounting for hazardous areas or standard AC
(100-240 VAC) for non-hazardous areas - Protect equipment from runaway using maintenance reminders including tank filling
- Easily collect material use data for environmental compliance reports
- Monitor flow rates to identify worn tips on your spray guns or calibration issues – reducing paint waste and cost
- Easy-to-read display is backlit for low light conditions
|
Informer |
|
|
Power In Requirements |
|
|
Voltage |
90–264 VAC |
|
Frequency |
50-60 Hz |
|
Phase |
1 |
|
Amps |
1.25A maximum |
|
Power Out Requirements: |
|
|
Power Supply 16V680 |
15 VDC, 1.2 A maximum |
|
Power Supply 16M167 |
15 VDC, 160 mA maximum |
|
Maximum Fluid Working Pressure |
|
|
289813 G3000 Meter |
4000 psi |
|
Environmental |
|
|
Operating Temperature |
32°-122°F |
|
Storage Temperature |
–22°-140°F |
|
Humidity |
0 to 95 percent, non-condensing |
|
Display housing is solvent resistant. |
|
|
Wetted Parts |
|
|
See the G3000 meter manual (308778) or Coriolis meter manual (313599). |
|
|
Weight |
|
|
Informer |
1 lb |
|
Mounting Bracket |
1 lb |
|
Power Supply 16M167 |
9 lb |
|
G3000 Meter |
6 |
