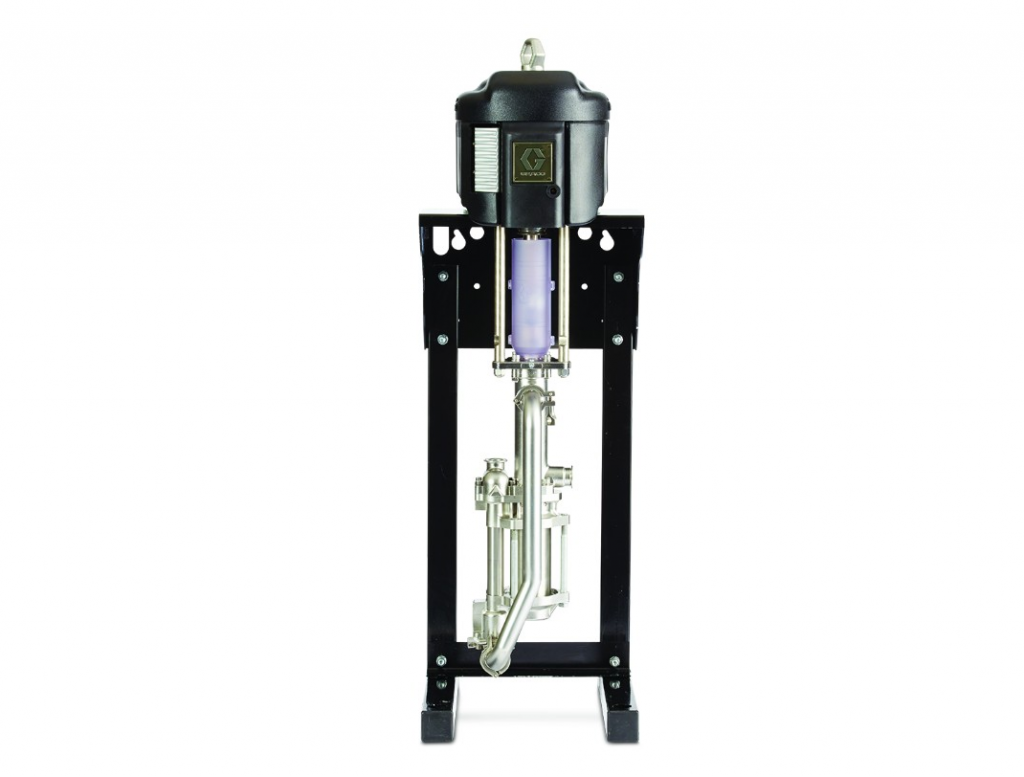

Graco’s positive displacement, 4-ball piston design keeps you up and running longer, and gives you the performance you have come to expect from Graco pumps.
- Positive displacement, 4-ball piston design provides high output per cycle to reduce pump wear and maintenance
- Modular design for easier maintenance
- Rugged body armor, won’t rust or dent
- De-icing controls eliminate stalling
- Optional DataTrak monitors and protects your pump
- Enclosed wet cup minimizes operator interaction for reduced maintenance
|
High-Flo 4–Ball Piston Pumps |
|
|
Maximum Air Input Pressure |
100 psi |
|
Air Consumption |
See performance charts in High-Flo 4–Ball Piston Pump manual. |
|
Maximum Fluid Temperature Rating |
150°F |
|
Wetted Parts |
See 4–Ball Lower manual. |
|
Maximum Fluid Working Pressure |
|
|
Model JX17XX |
170 psi |
|
Model JX20XX |
200 psi |
|
Model JX23XX |
230 psi |
|
Model JX30XX |
300 psi |
|
Model JX33XX |
330 psi |
|
Model JX35XX |
350 psi |
|
Model JX40XX |
400 psi |
|
Model JX44XX |
440 psi |
|
Model JX45XX |
450 psi |
|
Fluid Flow at 60 cpm |
|
|
Model JX17XX |
63 gpm |
|
Model JX20XX |
31.5 gpm |
|
Model JX23XX |
47.3 gpm |
|
Model JX30XX |
23.2 gpm |
|
Model JX33XX |
63 gpm |
|
Model JX35XX |
31.5 gpm |
|
Model JX40XX |
16.9 gpm |
|
Model JX44XX |
47.3 gpm |
|
Model JX45XX |
23.2 gpm |
|
Output per Cycle |
|
|
Model JX17XX |
4000 cc |
|
Model JX20XX |
2000 cc |
|
Model JX23XX |
3000 cc |
|
Model JX30XX |
1500 cc |
|
Model JX33XX |
4000 cc |
|
Model JX35XX |
2000 cc |
|
Model JX40XX |
1000 cc |
|
Model JX44XX |
3000 cc |
|
Model JX45XX |
1500 cc |
