Rely on Graco pistol grip dispense guns for precise control of sealants and adhesive. No matter what the viscosity or material, Graco has a solution for you.
Ultra-Lite 4000 & 4000 SD
150° Severe-Duty Pistol Grip Flow Guns (4000 psi/276 bar/27.6 mPa)
Ergonomic design
Precise control of low to medium viscosity materials
Designed for light trigger pull and easy handling
Changeable tips for a variety of dispensing needs
Typical applications: industrial and automotive single component sealant dispensing
Handles low abrasive fluids, PVC sealer, waterborne adhesives (with abrasive fillers for SD), silicone and solvent-borne materials (with abrasive fillers for SD)
For details, see Single Component Catalog 336833, pages 74 and 75
Ultra-Lite 6000
- 150° Pistol Grip Flow Guns (6000 psi/414 bar/41.4 mPa)
Precise control of highly viscous material - 150° head/handle is comfortable for operator
- Changeable tips for a variety of dispensing needs
- Lightweight with convenient trigger pull
- Typical applications: Automotive or industrial sealant and adhesive applications; high flow rate requirements; abrasive fluid requirements
- Handles rubber-based sealers, waterborne adhesives, silicone and solvent-borne materials
- For details, see Single Component Catalog 336833, pages 76 and 77

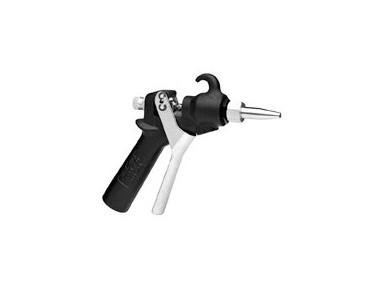

Pistol Grip Dispense Gun
- 120° or 90° head/handle (3400 psi/235 bar/23.5 mPa)
- Lightweight, low trigger pull
- Typical applications: automotive and industrial adhesives and sealants; low to high flow rate requirements; in-line handle requirements
- Handles rubber-based fluids, caulks, sealants, adhesives
- For details, see Single Component Catalog 336833, pages 78 and 79
Palm Grip Dispense Gun
- 3000 psi/210 bar/21.0 mP
- Lightweight, low trigger pull
- Typical applications: automotive and industrial adhesives and sealants; low to high flow rate requirements; in-line handle requirements
- Handles rubber-based fluids, caulks, sealants, adhesives
- For details, see Single Component Catalog 336833, pages 78 and 79
|
Pistol Grip Flo-Gun |
|
|
Maximum fluid working pressure |
6000 psi |
|
Inlet port size |
1/2 npt(f) |
|
Outlet port size |
1/4 npt(f) with quick detachable adapter and 0.094” pencil tip nozzle |
|
Wetted parts |
Steel, tungsten carbide, polyurethane, nitrile rubber, copper |
|
Height |
5.2 in. |
|
Length |
10.2 in. |
|
Weight |
2.22 lb |
|
Viton is a registered trademark of the DuPont Co. |
|
|
Ultra-lite Pistol Grip Flo-Gun |
|
|
Maximum Working Pressure |
|
|
Models 235627, 237607, and 237649 |
4000 psi |
|
Models 235628 and 243775 |
6000 psi |
|
Outlet Port Size |
|
|
All Models |
1/4 npt(f) with nut for metal flanged nozzle |
|
Inlet Port Size |
|
|
Models 235627 and 237607 |
1/4 npt(f) |
|
Models 235628 and 243775 |
1/2 npt(f) |
|
Model 237649 |
37 SAE, 1/2-20 UNF(m) |
|
Valve Orifice |
|
|
Models 235627, 237607, 243775, and 237649 |
0.20 in. diameter with tapered needle |
|
Model 235628 |
0.19 in diameter with 0.25 in. carbide ball |
|
Height |
|
|
All Models |
5.90 in. |
|
Width |
|
|
All Models |
1.20 in |
|
Length |
|
|
Models 235627, 235628, 243775 and 237607 |
8.05 in |
|
Model 237649 |
8.90 in. |
|
Weight |
|
|
Model 235627 |
15.45 oz |
|
Model 235628 and 243775 |
22.70 oz |
|
Model 237607 |
15.45 oz |
|
Model 237649 |
17.00 oz |
|
Wetted Parts |
|
|
Model 235627 |
|
|
Fluid Section |
Aluminum |
|
Fluid Tube |
300 Series Stainless Steel |
|
Valve Needle |
17-4 PH Stainless Steel |
|
Valve Seat |
17-4 PH Stainless Steel |
|
Other |
316 Stainless Steel, fluoroelastomer, and Polyurethane |
|
Model 235628 |
|
|
Fluid Section |
17–4 PH Stainless Steel |
|
Fluid Tube |
300 Series Stainless Steel |
|
Valve Needle |
Carbide and 17–4 PH Stainless Steel |
|
Valve Seat |
Carbide and 17–4 PH Stainless Steel |
|
Other |
Stainless Steel, fluoroelastomer, PTFE; CV75, and Polyurethane |
|
Model 243775 |
|
|
Fluid Section |
17–4 PH Stainless Steel |
|
Fluid Tube |
300 Series Stainless Steel |
|
Valve Needle |
Carbide and 17–4 PH Stainless Steel |
|
Valve Seat |
Carbide and 17–4 PH Stainless Steel |
|
Other |
Stainless Steel, fluoroelastomer, PTFE, and Polyurethane |
|
Model 237607 |
|
|
Fluid Section |
Aluminum |
|
Fluid Tube |
300 Series Stainless Steel |
|
Valve Needle |
Carbide and 17–4 PH Stainless Steel |
|
Valve Seat |
Carbide and 17–4 PH Stainless Steel |
|
Other |
316 Stainless Steel, fluoroelastomer, and Polyurethane |
|
Model 237649 |
|
|
Fluid Section |
Aluminum |
|
Fluid Tube |
300 Series Stainless Steel |
|
Valve Needle |
Carbide and 17-4 PH Stainless Steel |
|
Valve Seat |
Carbide and 17-4 PH 300 Series Stainless Steel |
|
Swivel Inlet Fitting |
303 Stainless Steel, and Ultra High Molecular Weight Polyethylene |
|
Other |
316 Stainless Steel, fluoroelastomer, and Polyurethane |
