Reactor E-XP1

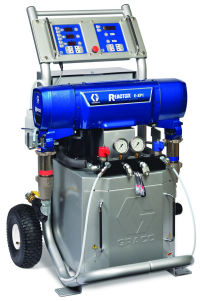

Graco Reactor E-XP1 proportioner is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged, portable design make the Reactor the preferred choice for coatings applications.

Graco also offers an electric proportioner in its new Reactor 2 series, the Reactor 2 E-XP2. Count on Graco Reactor E-Series proportioners for power, performance and productivity on fast-curing polyurea coatings. And get the job done faster and more reliably than ever before.

  • Powerful hybrid heater provides up to 15,300 watts of heat to pre-heat material quickly
  • Digital heat and pressure controls
    Easy to use
  • Quick knockdown lower pumps for easy maintenance
  • Rugged and portable
  • Circulation valves with long-lasting seals
  • Hose heat transformer that doesn’t require tap settings

Reactor E-20, E-30, E-XP1, E-XP2 Series

Maximum Fluid Working Pressure

Models E-20 and E-30: 2000 psi (14 MPa, 140 bar), Model E-XP1: 2500 psi (17.2 MPa, 172 bar), Model E-XP2: 3500 psi (24.1 MPa, 241 bar)

Maximum Fluid Temperature

190°F

Maximum Output

Model E-20: 20 lb/min (9 kg/min), Model E-30: 30 lb/min (13.5 kg/min), Model E-XP1: 1 gpm (3.8 liter/min), Model E-XP2: 2 gpm (7.6 liter/min)

Output per Cycle (A and B)

Model E-20 and E-XP1: 0.0104 gal. (0.0395 liter), Model E-30: 0.0272 gal. (0.1034 liter), Model E-XP2: 0.0203 gal. (.0771 liter)

Line Voltage Requirement

Parts 259024, 259025, 259026, 259028, 259057: 195-264 Vac, 50/60 Hz, Parts 259029, 259030, 259031, 259032, 259059: 338-457 Vac, 50/60 Hz, Parts 2590330, 259034, 259035, 259036, 259058: 195-264 Vac, 50/60 Hz

Amperage Requirement

See Table 1, page 19 in manual 312065

Heater Power

Model E-20: 6000 Watts, Model E-30 and E-XP1: 10200 Watts, Models E-XP2 and E-30 with 15.3kW of heat: 15300 Watts

Sound Power, per ISO 9614–2

Model E-20: 80 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-30: 93.5 dB(A) at 1000 psi (7 MPa, 70 bar), 3.0 gpm (11.4 lpm), Model E-XP1: 80 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-XP2: 83.5 dB(A) at 3000 psi (21 MPa, 210 bar), 1.0 gpm (3.8 lpm)

Sound Pressure 1 m from equipment

Model E-20: 70.2 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-30: 83.6 dB(A) at 1000 psi (7 MPa, 70 bar), 3.0 gpm (11.4 lpm), Model E-XP1: 70.2 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-XP2: 73.6 dB(A) at 3000 psi (21 MPa, 210 bar), 1.0 gpm (3.8 lpm)

Fluid Inlets

3/4 npt(f), with 3/4 npsm(f) union

Fluid Outlets

Component A (ISO): #8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter, Component B (RES): #10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter

Fluid Circulation Ports

1/4 npsm(m), with plastic tubing; 250 psi (1.75 MPa, 17.5 bar) maximum

Weight

Model E-20 and E-XP1: 342 lb (155 kg), Model E-30: 400 lb (181kg), Models E-XP2 and E-30 with 15.3kW of heat: 438 lb (198 kg)

Wetted parts

Aluminum, stainless steel, zinc plated, carbon steel, brass, carbide, chrome, chemically resistant o-rings, PTFE, ultra-high molecular weight polyethylene
